Product Specifications
- Variable length: 24” - 119” L
- Standard: 7 ¾” H or 11 ¾” H
- *Note: exact tile dimensions are customizable based on t-grid specs.
- Hardware is modular and designed to mount anywhere on the baffle
- Compatible with 9/16” (twist clips) and 15/16” t-grids (provided by others)
- Lead times: 3-6 weeks for standard, 3-8 weeks for custom
Technical Specifications
Absorption
Standard: .75–1.15 NRC
Recommend spacing for max NRC: 6–12"
Material
100% polyester fiber acoustic felt.
Eco-Friendly
Yes! 60% recycled PET materials, 40% new material, non-toxic, non-allergenic, non-irritant, no coatings or sprays which degrade over time.
Fire Rating
ASTM E84 Class A Fire Spread rating is permanently achieved by infusing 40% new material into the panel. MPS never uses sprays or coatings that degrade and lose their rating status.

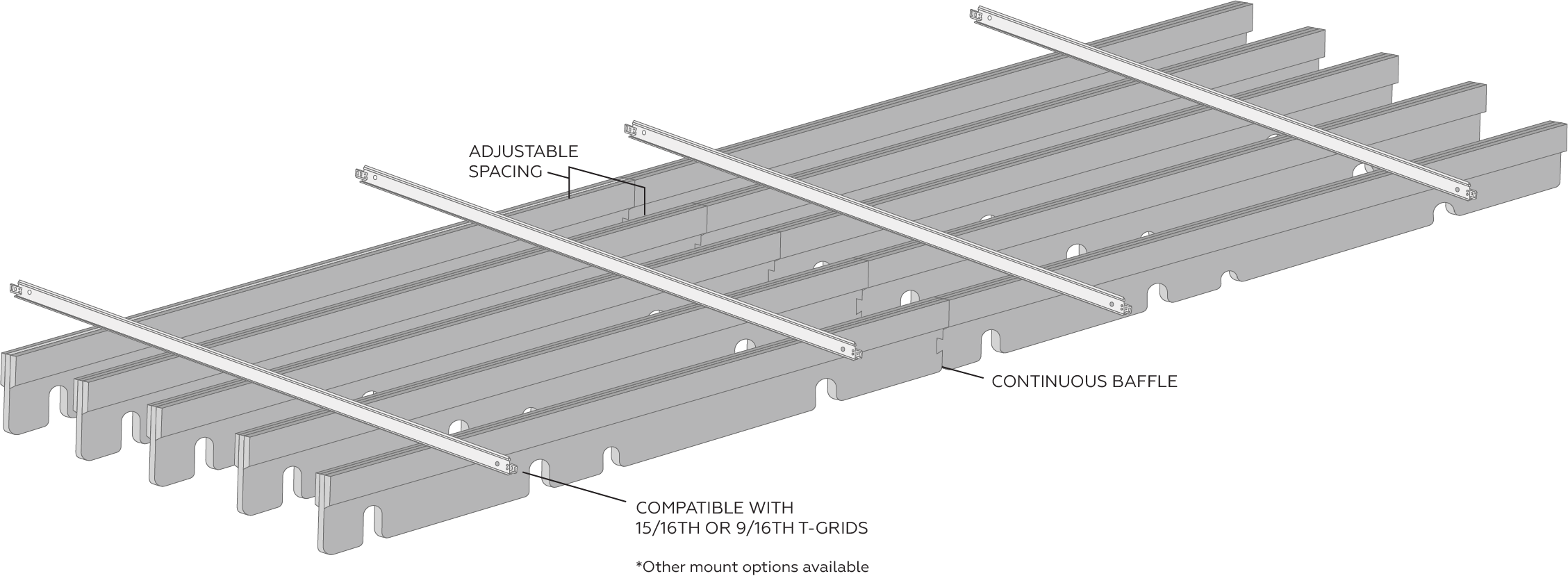

Mounting Options
How to Specify Notch
Acoustic Colors
MPS offers over 20 standard colors, plus more options and customs with SHADES.
Standard Colors
-
Snow
-
Ivory
-
Sand
-
Marble
-
Cream
-
Biscuit
-
Khaki
-
Earth
-
Coffee
-
Wine
-
Avocado
-
Sage
-
Stone
-
Ocean
-
Denim
-
Granite
-
Slate
-
Graphite
-
Evergreen
-
Midnight
-
Onyx
-
Woodgrains
-
Ash
-
Weathered Teak
-
Plywood
-
Aged Ash
-
Planche Oak
-
Honey
-
Italian Walnut
-
Warm Ash
-
Main Street Elm
-
Vista Walnut
-
Dark Walnut
Design a Baffle System
Interested in using Notch Ceiling Baffle in your space?
